10′ & 20′ Reefer Containers

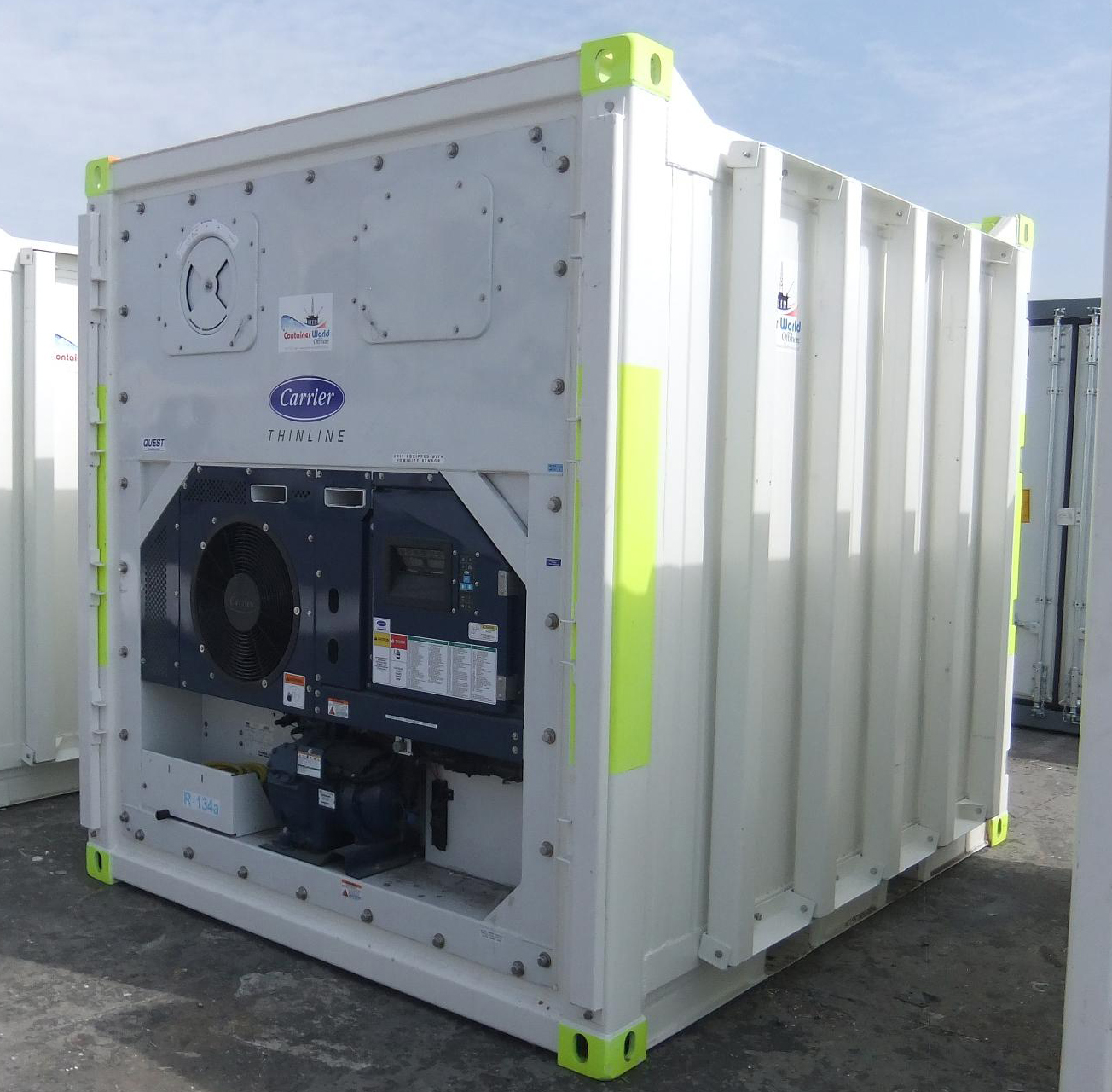

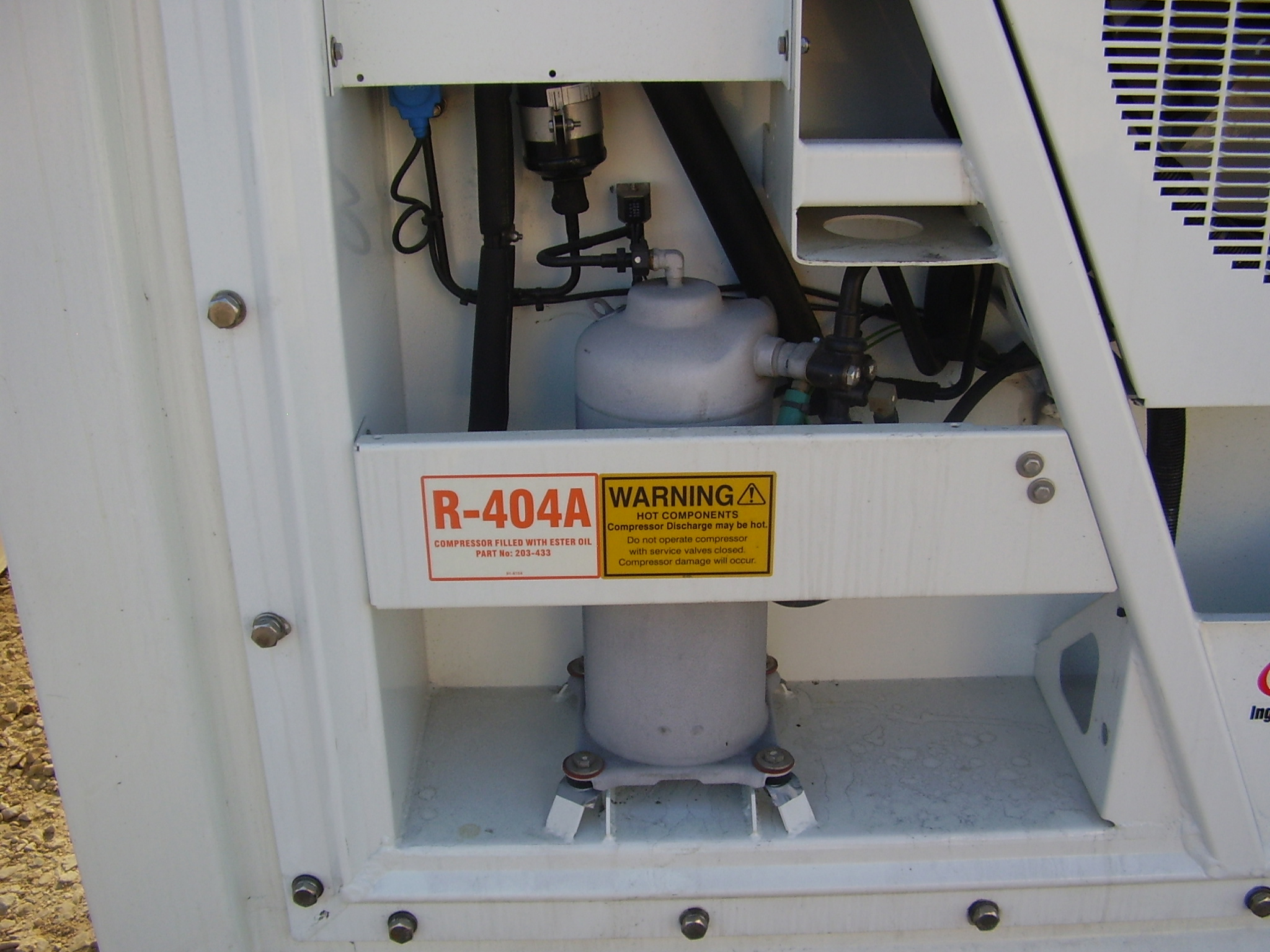

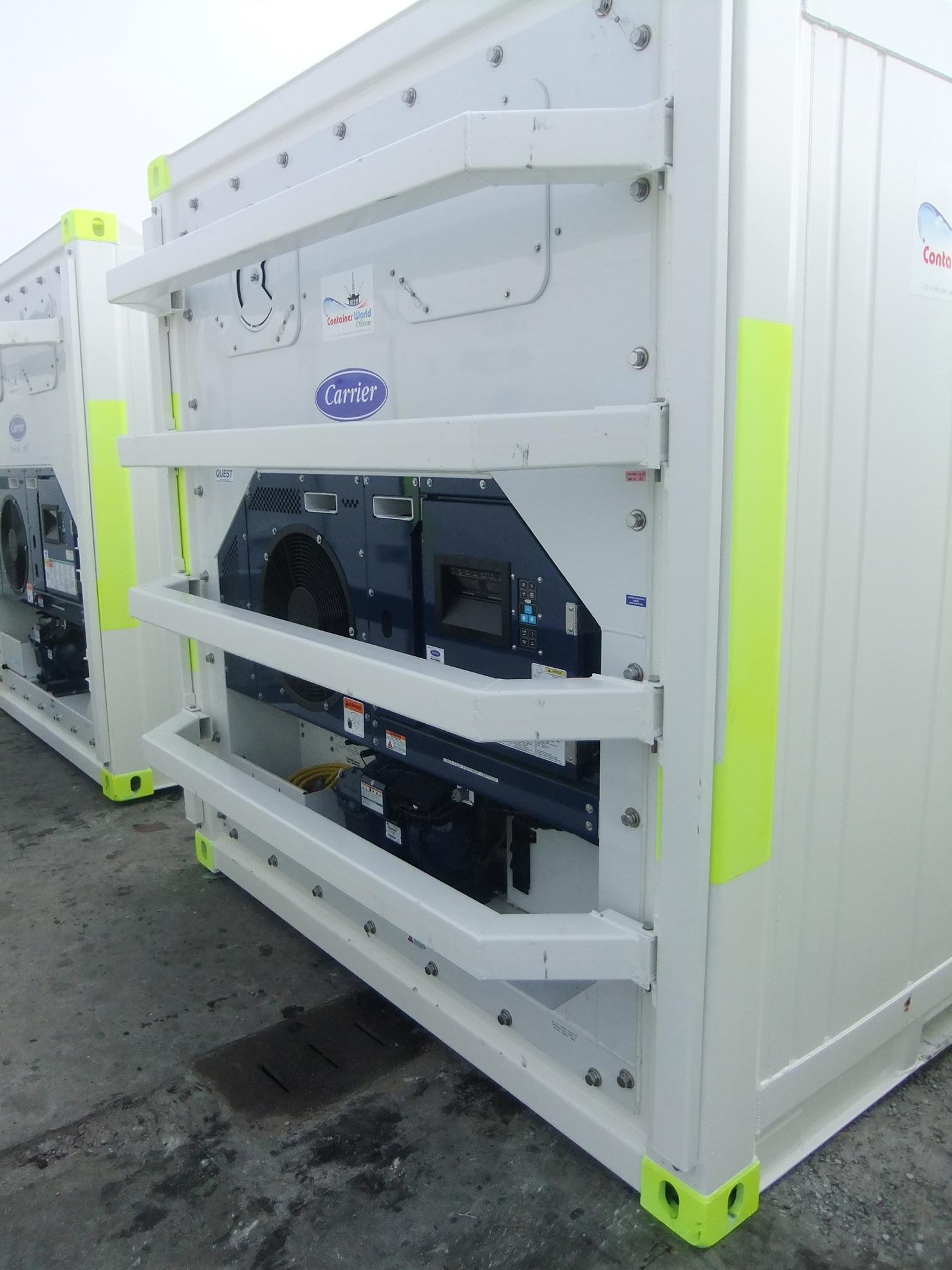

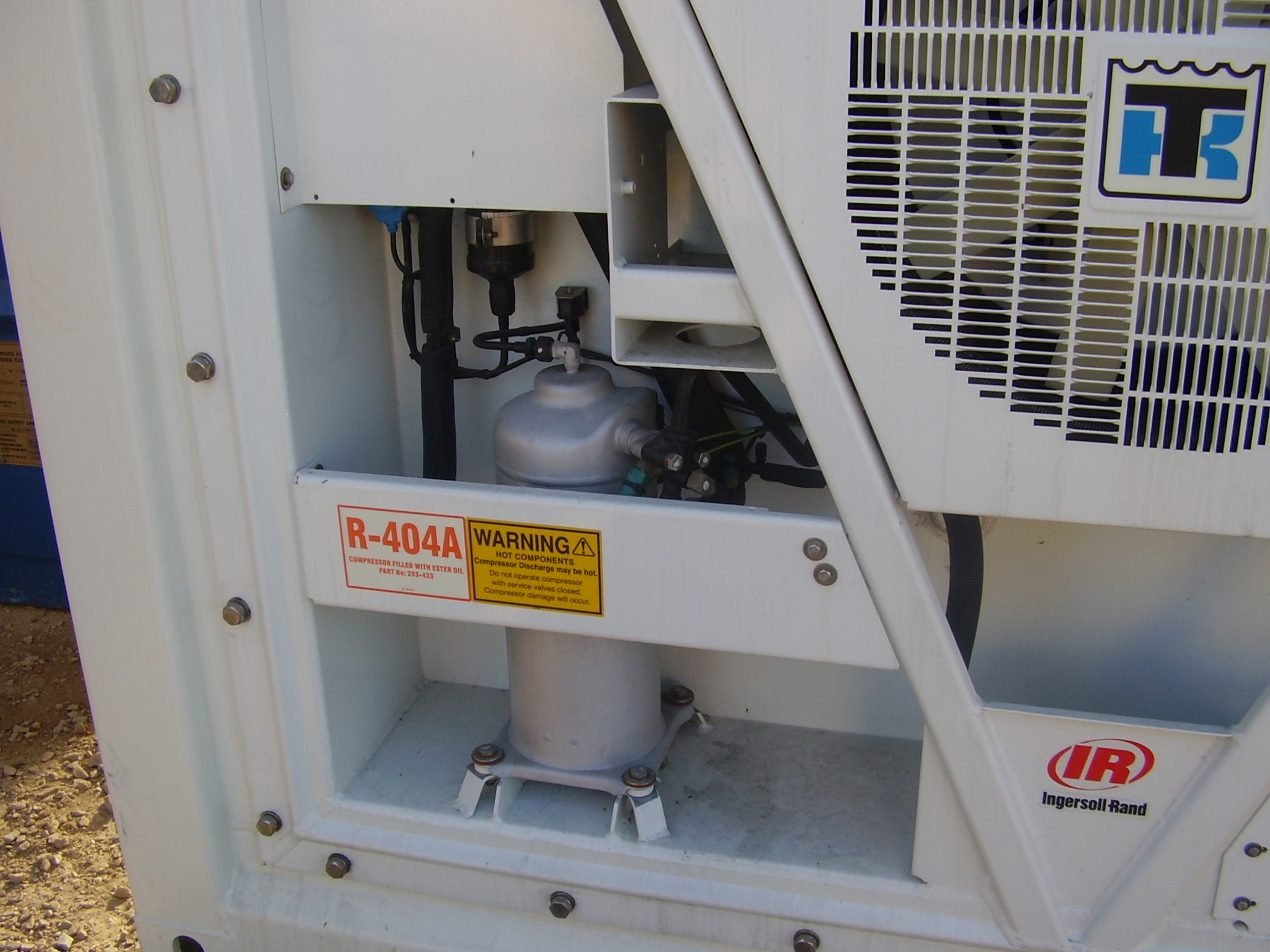

Refrigeration machinery: Picture frame type. The frame is constructed of aluminium and treated to resist corrosion by the salt spray atmosphere. The evaporator door is the hinged removable type for easy access. The rear bulkhead panels are constructed of aluminium with a high inherent corrosion resistance. Between the evaporator and condenser section, the unit is insulated with fire resistant, (according to ISO3582), and CFC-free 32kg/m3 polyurethane foam.

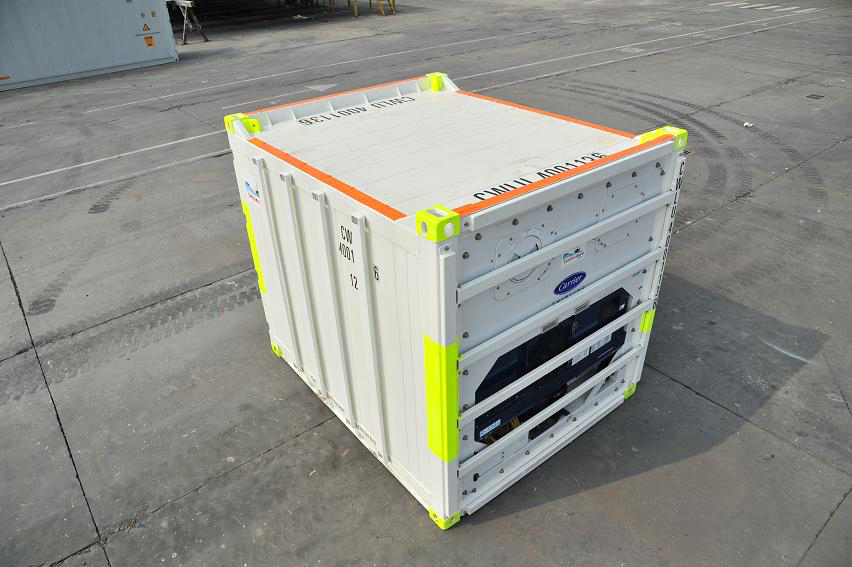

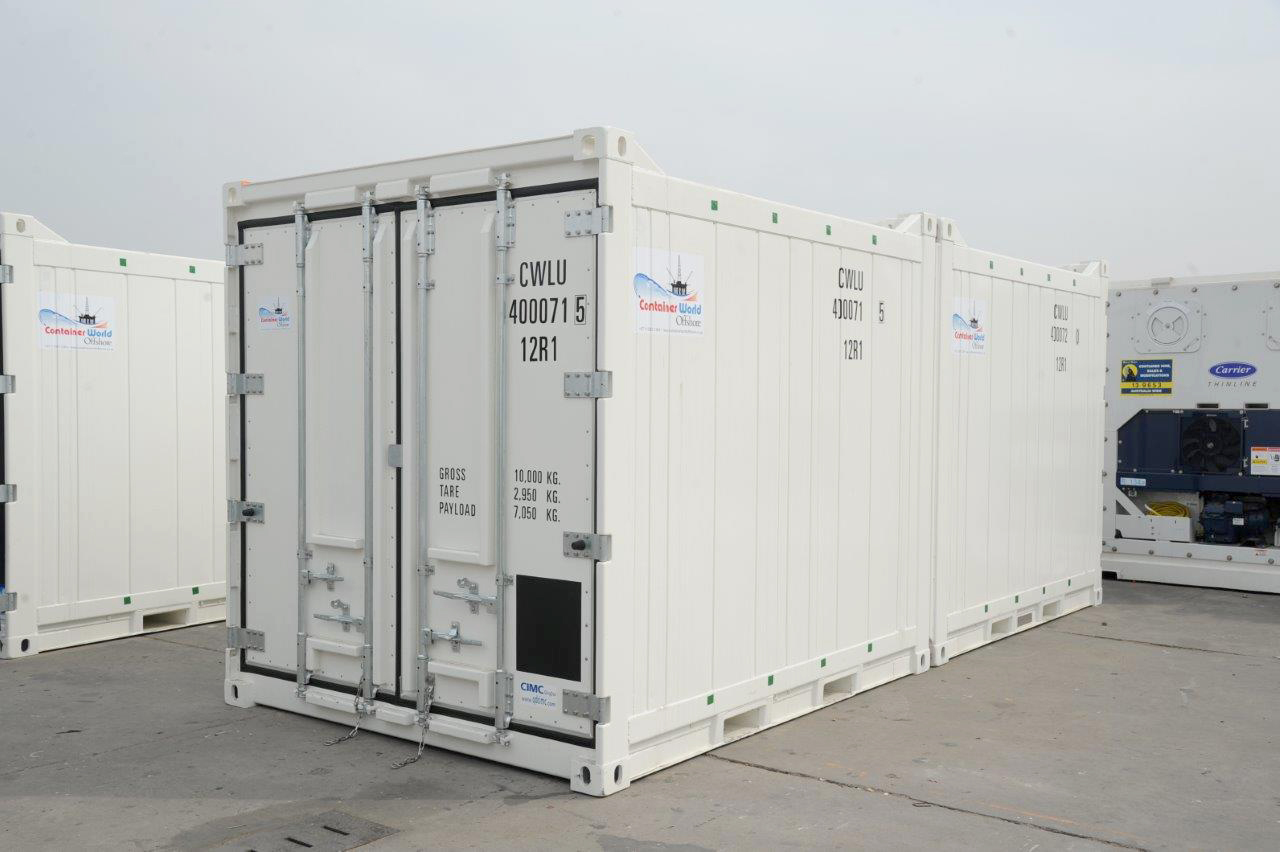

10′ Reefer Containers

Offshore DNV reefers offer the perfect solution for the transportation of perishable goods. In addition, Container World Offshore10′ reefers also offer transport efficiency by being able to connect together and move as one 20′ ISO container, thereby offering large mobilisation cost savings. Cooling range from -30°C degrees to +20°C

Specifications:

L – 2991mm x W 2438mm x H 2591mm
Tare – 3250kg
Payload – 6750kg
MGW – 10000kg

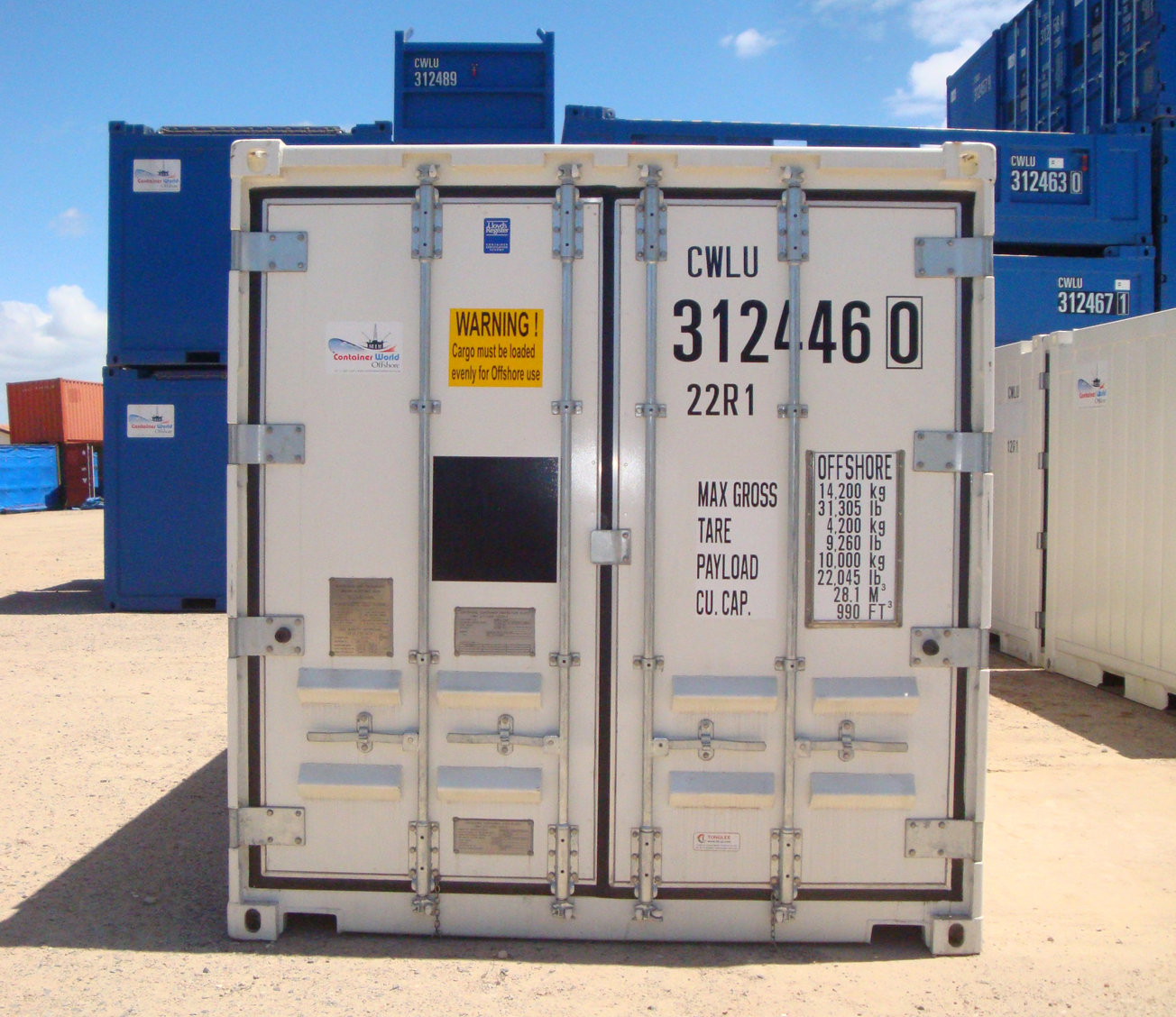

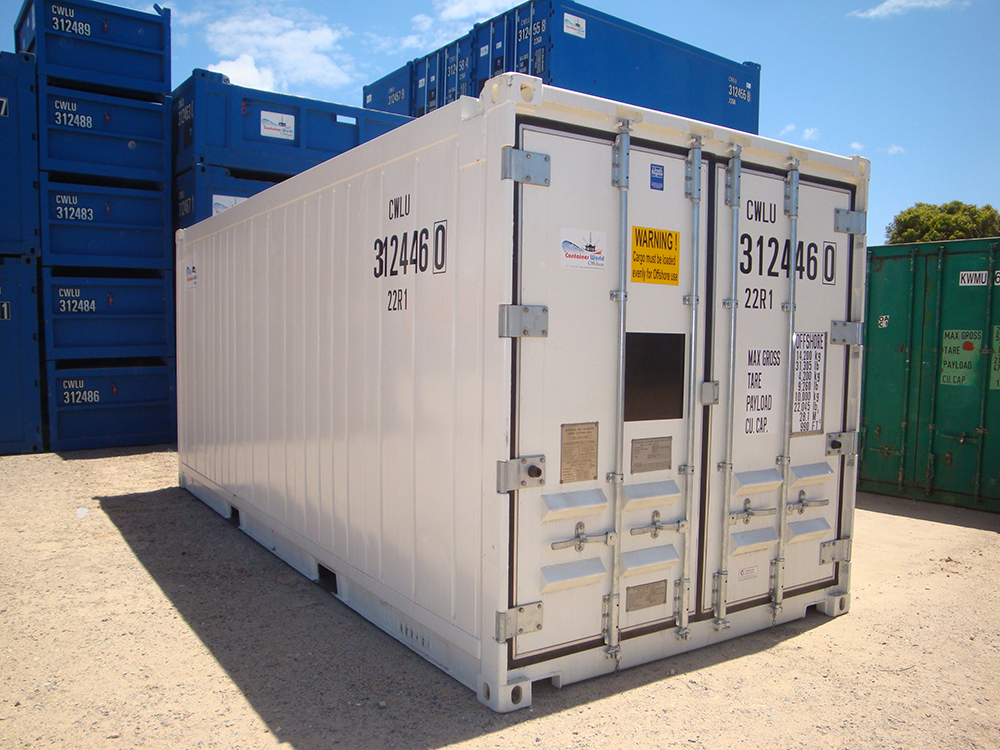

20′ Reefers

The 20ft Offshore Reefers are ideal to use for the transportation of food or other perishable cargo to oil rig platforms and ships. Cooling range from -30°C degrees to +20°C

DNV 2.7-1/EN12079 C/W TYPE APPROVAL AND PROTOTYPE TEST CLASSIFICATION SOCIETY - LLOYD REGISTER
